Me CO2 Regulator Ultra incl. Solenoid Valve
- CO2 pressure regulator with two gauges
- Integrated solenoid valve
- Bubble counter with non-return protection
- Adjustable working pressure up to 6 bar
- Standard W21.8 connection
Curbside delivery: This item ships by freight carrier and is delivered to the curb only, not to your door or into your home. The carrier will call you in advance to schedule a delivery date. Learn more about freight delivery
Customers also bought
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description

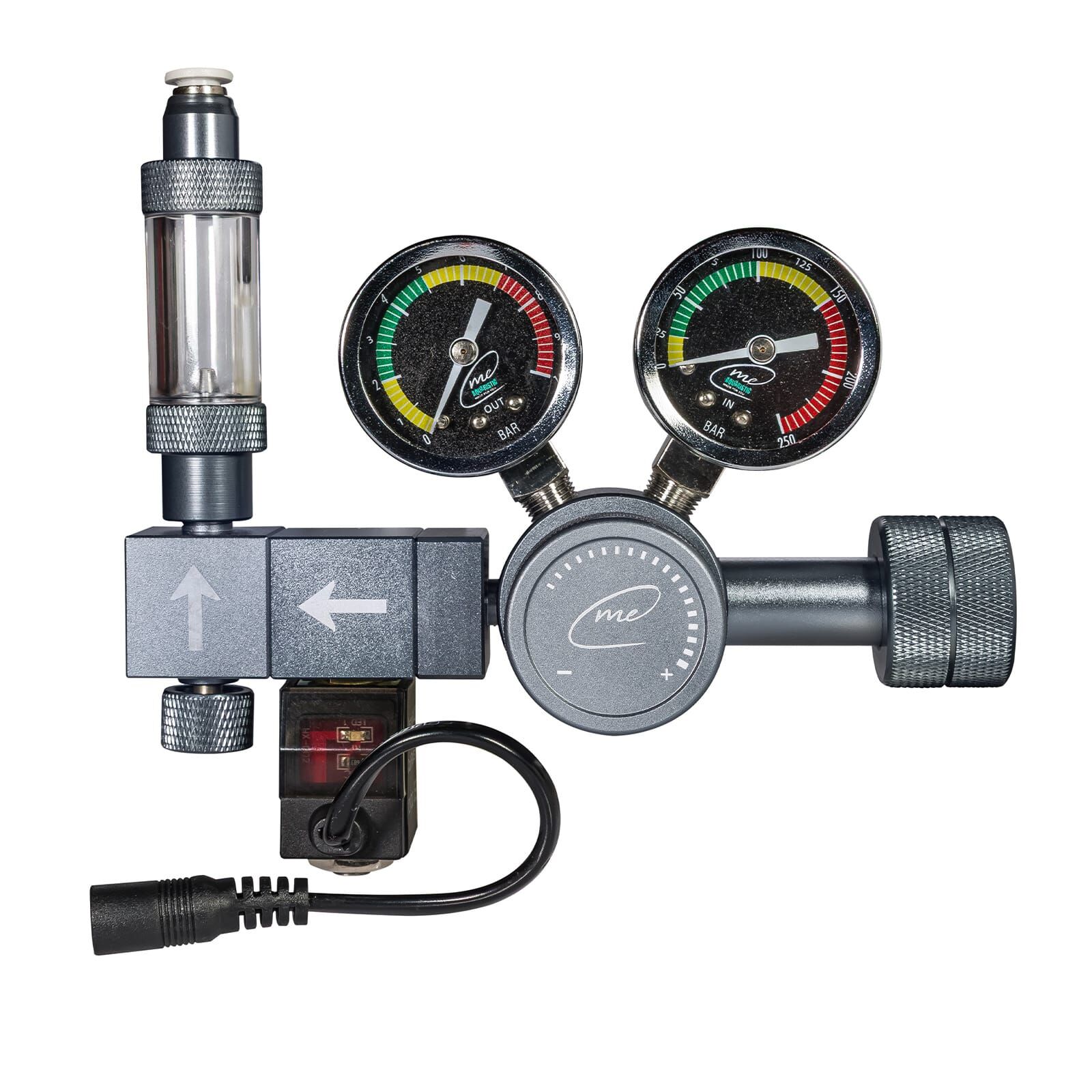

The Me CO2 Regulator Ultra is a precise CO2 pressure regulator with an integrated solenoid valve and bubble counter that ensures a reliable and consistent CO2 supply for aquariums. Two pressure gauges clearly display both cylinder and working pressure. The unit is designed for use with refillable CO2 cylinders featuring a W21.8 thread and provides a stable CO2 supply to promote healthy plant growth.
The integrated solenoid valve enables automatic control of CO2 flow, for example via a timer or pH controller. The bubble counter with check valve allows visual monitoring of the dosage. The adjustable working pressure of 0–6 bar and the maximum inlet pressure of 150 bar provide high precision and safety during operation.
Features
- CO2 pressure regulator with two gauges for cylinder and working pressure display
- Integrated solenoid valve for automatic CO2 control
- Bubble counter with check valve for precise dosage
- Adjustable output pressure from 0 to 6 bar
- Maximum inlet pressure: 150 bar
- Standard W21.8 connector suitable for common refillable CO2 cylinders
- Ensures a stable and efficient CO2 supply for healthy plant growth
Application
- The bubble counter is filled with water to about two-thirds before operation.
- The regulator is screwed onto the CO2 cylinder with a W21.8 thread while the cylinder valve is closed.
- The CO2 hose is connected to the regulator’s outlet.
- The solenoid valve is connected to a suitable timer or controller. It opens when powered and closes automatically in the event of a power cut.
- After slowly opening the cylinder valve, the right pressure gauge indicates the cylinder pressure.
- The working pressure is adjusted using the fine adjustment valve (the left gauge displays the output pressure).
- The bubble rate is adjusted as required using the control knob (typically 1–3 bubbles per second for planted aquariums).
- After use, the cylinder valve is closed and any remaining pressure in the system is released.
Technical Data
| Me CO2 Regulator Ultra Solenoid Valve | |
|---|---|
| Max. inlet pressure | 150 bar |
| Output pressure | 0 – 6 bar (adjustable) |
| Solenoid valve voltage | Input: 100–240 V / Output: 12 V DC |
| Power consumption | 2,5 W |
| Cable length | 1,1 m |
| Connector thread | W21.8 (for refillable CO2 cylinders) |
Dimensions
| Me CO2 Regulator Ultra | |
|---|---|
| Length | 85 mm |
| Width | 75 mm |
| Height | 105 mm |
Scope of Delivery
- 1 × CO2 pressure regulator with two gauges
- 1 × Solenoid valve
- 1 × Bubble counter with check valve
- 1 × Power supply unit (Input: 100–240 V / Output: 12 V DC)
- 1 × User manual
Product Safety
Caution – Electricity
Warnings:
- Improper use may cause serious injury or damage. Keep out of reach of children!
- Do not use oil- or grease-based lubricants – explosion risk when in contact with pressurised CO2!
- Electrical connections should only be made by qualified personnel.
- Use only with timers or controllers suitable for continuous operation.
- Always disconnect from the power supply before cleaning or maintenance.
General Information:
- Use only with suitable CO2 cylinders (observe the maximum inlet pressure of 150 bar).
- Do not operate near open flames or heat sources.
- Operate the device only in well-ventilated areas and at room temperature.
- The solenoid valve must only be operated at the specified voltage.
Handling Instructions:
- Mount or remove only with the cylinder valve closed.
- Never tighten with excessive force – seals must not be damaged.
Me
Me supplies high-quality aquarium supplies. The company has more than 30 years of experience in development, purchasing and logistics. This expertise is incorporated into the continuous improvement of accessories and aquarium products in order to provide reliable and durable equipment for aquariums.
Manufacturer information
| Manufacturer | |
|---|---|
| Name | AS Aquaristik & Heimtierbedarf GmbH & Co. KG |
| Street | Gewerbering 19 |
| City | 86931 Prittriching |
| State | Bayern |
| Country | Deutschland |
| as@as-aquaristik.de | |
| Website | www.as-aquaristik.de |
General information
| Item no. |
|
| EAN | 4043366012115 |
| Weight | 0,90 kg |
| Shipping weight | 0,95 kg |
