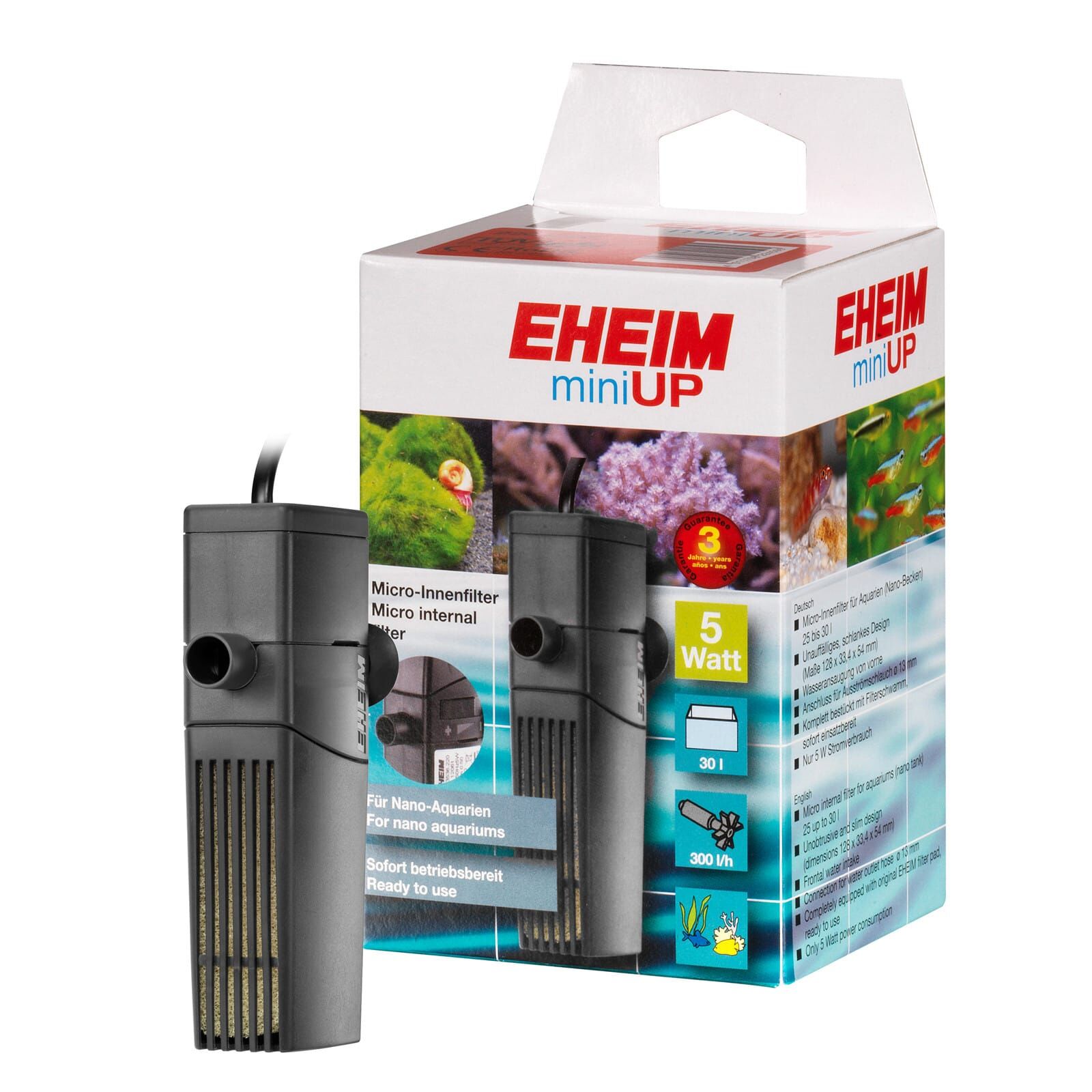

EHEIM miniUP
- Available with EHEIM filter pad
- Only 5 Watt power consumption
- Unobtrusive, slim design
Curbside delivery: This item ships by freight carrier and is delivered to the curb only, not to your door or into your home. The carrier will call you in advance to schedule a delivery date. Learn more about freight delivery
Customers also bought
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description
The MiniUP by EHEIM is small, gives excellent performance and is simple to fix to the tank with suction cups. The filter sucks the water in through vents, carries it through the filter sponge and directs it further up, cleaned, back into the tank. The MiniUP can also connect with an outlet hose in order to adjust the outflow direction. The water flow rate can be regulated by a slider on the pump head.
The MiniUP ist available with the EHEIM filter pad, ready to use. It is suitable for frehwater and seawater.
Features
- Unobtrusive, slim design
- Available with EHEIM filter pad
- Very energy efficient
- High pump performance
- Adjustable flow rate
- Suitable for marine water (salt)
- Suitable for nano tanks
Techincal data
| EHEIM MiniUP | |
|---|---|
| Power consumption | 5 W |
| Flow rate | 300 l/h |
| Suitable for Aquariums | 20 to 30 litres |
Dimensions
| EHEIM MiniUP | |
|---|---|
| Width | 33,40 mm |
| Height | 128 mm |
| Depth | 54 mm |
| Diameter hose connection | 13 mm |
Scope of Delivery
- Motor housing
- Impeller
- Pump cover with flow control
- Suction cups (3x)
- Filter cartridge (2x)
- Filter container
Product safety
Caution: Electricity hazard
Warning notes:
- Do not allow the device packaging and small parts to come into the hands of children or persons who are not aware of their actions, as this may pose hazards (risk of suffocation!). Keep away from animals.
- This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless supervised or instructed accordingly and they understand the dangers.
- This device may be used by children aged 8 and above and by persons with reduced capabilities, if supervised or instructed and if they understand the associated risks. Children must not play with the device. Cleaning and maintenance must only be carried out under supervision.
- Immediately disconnect all devices in the aquarium from the mains in the event of a leakage or if the residual current device trips.
- Always disconnect all devices in the aquarium from the mains when not in use, before installing or removing parts, and before all cleaning and maintenance work.
- Protect the socket and plug from moisture and wetness. Always form a drip loop with the power cable to prevent water from reaching the socket and causing a short circuit.
- The electrical data of the device must match the data of the power supply. You can find this information on the rating plate, packaging or in the manual.
General notes:
- The device must never be operated outside of water.
- The power cable of this device cannot be replaced. If the cable is damaged, the device must be disposed of.
Handling notes:
- Perform a visual inspection before use to ensure that the device, power cable and plug are undamaged.
- Repairs must only be carried out by an EHEIM service centre.
- Only perform work that is described in the manual.
- Never make technical modifications to the device.
- Use only original spare parts and accessories for the device.
- We recommend protecting all electrical aquarium devices with a residual current device rated at a maximum of 30 mA.
EHEIM
EHEIM stands for high-quality aquarium filters, manufactured in Germany. The product range includes external and internal filters as well as filter pumps, suitable for both planted aquariums and aquascapes. EHEIM places great emphasis on the highest quality standards and technical innovations. These features have made EHEIM a well-known name in the field of aquatics. Many people involved in aquarium keeping appreciate the reliability and durability of the products, which consistently ensure optimal water quality. Thanks to these qualities, EHEIM has been considered a reliable partner for efficient aquarium technology for many years.
Manufacturer information
| Manufacturer | |
|---|---|
| Name | EHEIM GmbH & Co. KG |
| Street | Plochinger Str. 54 |
| City | 73779 Deizisau |
| State | Baden-Württemberg |
| Country | Deutschland |
| info@eheim.com | |
| Website | eheim.com/de_DE |
General information
| Item no. |
|
| EAN | 4011708224595 |
| Weight | 0,25 kg |
| Shipping weight | 0,30 kg |
Questions and answers about EHEIM - miniUP
You have questions about this product? Ask other customer or our support team about this product!
Customer reviews
2 Reviews
| 5 Stars(1) |
|
| 4 Stars(0) |
|
| 3 Stars(1) |
|
| 2 Stars(0) |
|
| 1 Star(0) |
|
The little Eheim miniUp combines great with the JBL WideSet 13 mm, and you've got a very variable outlet.
Show original
sehr Empfehlenswert
Der kleine Eheim miniUp lässt sich super mit JBL WideSet 13 mm kombinieren, schon hat mein einen sehr variablen Auslass.
Generally the miniUP is an ideal tiny filter for nano/quarantine/rearing tanks. Since it's the same pump as the Skim350, you can adjust the filter somewhat, but on the lowest... (read more)
Show original
out of the box zu kräftig ...
generell ist der miniUP ein idealer Kleinstfilter für Nano/Quarantäne/Aufzucht-Becken.
da es sich um die selbe Pumpe des Skim350 handelt kann man den Filter zwar etwas regeln, ist jedoch in der untersten Stufe immer noch zu kräftig und muß mit diversen Hilfen runtergedrosselt werden ...
habe zuerst einen feineren Filterschaum (45ppi) verwendet, dazu aus Resten mittels einem Stück AQ-Schlauch ein Filter-Rohr am Ausgang angesetzt & das mit kleinen 3mm-Löchern bearbeitet.
jetzt macht der Filter eine feine & nicht zu starke Oberflächen-Strömung im Aufzucht-Becken.
Akustisch ist er leider etwas wahrnehmbar, jedoch noch im Rahmen.
Für die Kleinheit dieses Filters finde ich den Stromverbrauch von 5 Watt allerdings zu hoch (siehe Vergleich zu Eheim Classic 150).
