Is this the DE version incl. Bluetooth, or does a Commander have to be ordered separately?

The matching Bluetooth Commander does not have to be ordered separately; it is already included with the lighting.

The lamp gets very, very warm, so that I can only just touch it. Is that normal?

The heat development is normal, and the lamp body also serves as a heat sink for the LEDs. However, if the temperature gets so high that you can't touch the lamp, please contact our customer support at info@aquasabi.business

Is everything inculded in the price or do I need to buy something more to be able to use the app?

The Chihiros LED System Series B already includes the Bluetooth controller needed for app control.

Hello, what glass thickness can the tank have so that the U-profile of the lamp fits on it?

The maximum glass thickness is 8 mm for models B20 - B60 and 12 mm for models B80 - B120.

Hello. The description says the Bluetooth controller is included, but in the reviews someone writes that they had to buy it separately. Which is correct? Best regards

That review is from a long time ago; by now the Commander 1 Bluetooth Edition is included as standard in the scope of delivery.

Dennerle Scapers Tank white glass 70 liters, would the B45 be enough there?

Since the LED has adjustable mounts, it can also be used on the 50 cm wide Scaper's Tank from Dennerle. With the Chihiros LED System Series B45, you then get approx. 24.89 lm/l.

Do you need a separate controller for the lamp, or can you switch it on and off externally with a timer?

The controller is not strictly required. The lamp can also be controlled with a timer.

Hello. Is the Bluetooth adapter included in the scope of delivery with you? Other shops explicitly state that the controller is included.

The Chihiros Commander 1 Bluetooth Edition is included in the scope of delivery.

Hello, I have an 80 cm tank. Is the B60 (60 cm-80 cm) or the B80 (80 cm-100 cm) the right lamp? Thank you very much

Since the lamp's mounts are adjustable, both the B60 and B80 versions can be used for an aquarium with a length of 80 cm. If the plants in the tank need stronger lighting, we recommend the larger B80 with 2,559 lumens.

How long is the lifespan of the Series B LED System, and if it's defective, does the whole thing have to be replaced?

The LEDs have a lifespan of up to 50,000 hours. If an LED fails, the entire lamp has to be replaced; individual LEDs cannot be replaced.

Can settings also be made without the app?

The Chihiros LED System Series B turns on as soon as it is connected to power. The functions and settings can only be used with the My Chihiros app.

What am I supposed to picture when it says adjustable mount? Is the mount of the lamp adjustable in length?

The adjustable mount of the Chihiros LED System Series B means that the lamp has adjustable feet that let you adapt the length of the support surface to your aquarium. This allows the lamp to be flexibly set to different tank widths, which is especially handy if the aquarium doesn't exactly match the length of the light.

Can the intensity of the RGB LEDs be controlled independently of the white LEDs?

With the Chihiros B series, only the intensity of the white LEDs can be changed.

Is one B80 enough for a tank size of 803540

With a tank size of 80x35x40 cm, the lamp delivers 22.85 lm/l. For plants with low to medium light requirements, this may be enough.

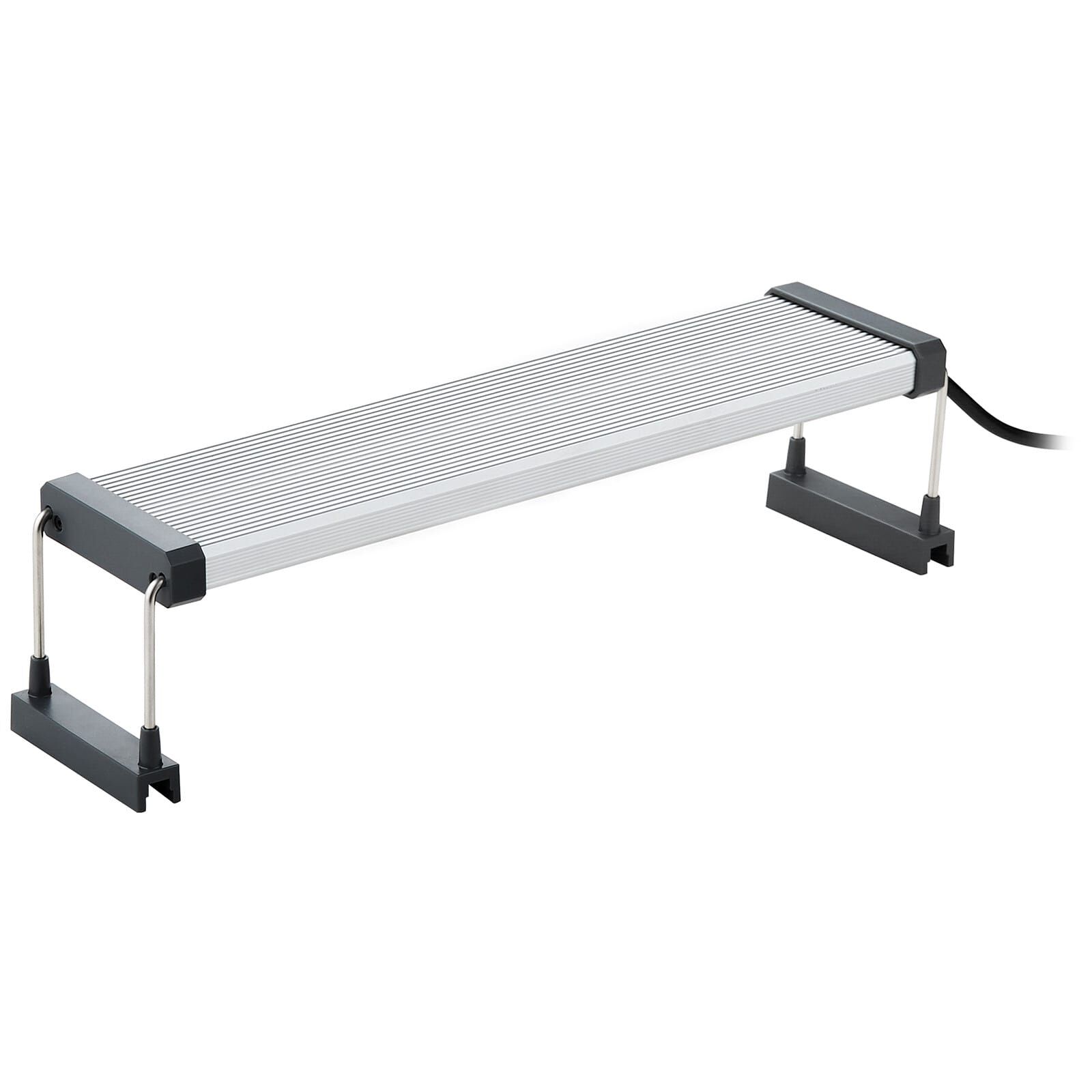

Chihiros LED System Series B

(25 ratings)

Combination of white and RGB Leds
Cooling fins as a design element
Control via app possible
Flat aluminium case

In stock

Free shipping on orders over € 60,- within Germany Change region

Express delivery possible

1-3 business days - order today and we’ll deliver Wednesday at the earliest

I want to order to

confirm

Variation

B20

starting at

€

39.

B30 (out of stock)

€

42.

B45

starting at

€

59.

B60

starting at

€

79.

B80

starting at

€

94.

B90

starting at

€

99.

B120

starting at

€

119.-

Please choose a variation

Item question

We’re here for you!

Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.

Thank you for your question!

Thank you, we’ll get in touch!

Close window

You already sent us a question.

Please wait a few minutes

Description

The Chihiros Series B LED System is a lighting series Suitable for aquarium lengths up to 140 cm Width. Equipped with a mixture of white and RGB LEDs, the luminaire provides a bright light to help even challenging aquatic plants grow beautifully.

Attached Chihiros Series B LED

Side view of a mounted Chihiros Series B LED

In the B series, the white LEDs are arranged in the outer area and the RGBs in the middle. In this way, an even distribution of the colour spectrum is ensured. As a result, the painstakingly assembled aquascape is ideally illuminated and the colours of aquatic plants and creatures are made to shine.
Light intensity, lighting breaks and entire daily routines can be individually tailored to the aquascape with the help of the "My Chihiros APP" and the a href="https://www.aquasabi.com/Chihiros-Commander-1-Bluetooth-Edition" aria-label="Bluetooth Commander - Product page">Commander.

Aquascape with Chihiros Series B

Aquascape set up with the Chihiros Series B

To avoid the LED distracting from the beautiful layout of the tank, the design has been kept simple but stable. The body is made of aluminium and makes the complete luminaire very light. The LED System Series B is offered in different sizes. Additionally, each LED is equipped with an adjustable stand in order to easily fit tanks that do not have standard sizes.

Manual Chihiros Serie B - - download PDF

Features

LED lighting for the aquarium
With adjustable holders
Both white and RGB LEDs are built in
Available in different sizes
Made of sturdy and light aluminium
Chihiros Commander 1 Bluetooth Edition included in the scope of delivery
Control with the "My Chihiros APP" possible

Note

The lamp is not suitable for operation under an aquarium cover.

The Chihiro lighting units we offer are exclusively the DE models. These are supplied with the appropriate power supply unit and the corresponding Euro plug.

Technical Data

Note on technical specifications:
These official lumen values are based on laboratory measurements under standardized conditions. In practical use, actual values may differ. Chihiros deliberately provides realistic values in their manuals that can be achieved during normal operation, which may lead to differences between the two sets of data.

Chihiros LED System Series B - B20
Power Consumption	12,7 W
Luminous Flux	813 lumens
Colour Temperature	800 K
RGB LEDs	6 piece
White LEDs	24 piece

Chihiros LED System Series B - B30
Power Consumption	20,9 W
Luminous Flux	1.292 lumens
Colour Temperature	9.500 K
RGB LEDs	6 piece
White LEDs	24 piece

Chihiros LED System Series B - B45
Power Consumption	28,9 W
Luminous Flux	1.747 lumens
Colour Temperature	9.500 K
RGB LEDs	9 piece
White LEDs	36 piece

Chihiros LED System Series B - B60
Power Consumption	37,1 W
Luminous Flux	2.214 lumens
Colour Temperature	9.800 K
RGB LEDs	12 piece
White LEDs	48 piece

Chihiros LED System Series B - B80
Power Consumption	41,3 W
Luminous Flux	2.559 lumens
Colour Temperature	9.000 K
RGB LEDs	15 piece
White LEDs	60 piece

Chihiros LED System Series B - B90
Power Consumption	46,8 W
Luminous Flux	2.881 lumens
Colour Temperature	8.500 K
RGB LEDs	18 piece
White LEDs	72 piece

Chihiros LED System Series B - B120
Power Consumption	51,3 W
Luminous Flux	3.256 lumens
Colour Temperature	8.500 K
RGB LEDs	21 piece
White LEDs	84 piece

Dimensions

Chihiros LED System Serie B - B20
Width	176 mm
Height	12 mm
Depth	56 mm
Suitable for aquarium length	200 - 300 mm
Suitable for glass thickness	up to 8 mm

Chihiros LED System Serie B - B30
Width	276 mm
Height	12 mm
Depth	56 mm
Suitable for aquarium length	300 - 500 mm
Suitable for glass thickness	up to 8 mm

Chihiros LED System Serie B - B45
Width	426 mm
Height	12 mm
Depth	56 mm
Suitable for aquarium length	450 - 650 mm
Suitable for glass thickness	up to 8 mm

Chihiros LED System Serie B - B60
Width	576 mm
Height	12 mm
Depth	56 mm
Suitable for aquarium length	600 - 800 mm
Suitable for glass thickness	up to 8 mm

Chihiros LED System Serie B - B80
Width	776 mm
Height	12 mm
Depth	56 mm
Suitable for aquarium length	800 - 1.000 mm
Suitable for glass thickness	up to 12 mm

Chihiros LED System Serie B - B90
Width	876 mm
Height	12 mm
Depth	56 mm
Suitable for aquarium length	900 - 1.100 mm
Suitable for glass thickness	up to 12 mm

Chihiros LED System Serie B - B120
Width	1.176 mm
Height	12 mm
Depth	56 mm
Suitable for aquarium length	1.200 - 1.400 mm
Suitable for glass thickness	up to 12 mm

Chihiros

Chihiros Aquatic Studio is a technology company specialised in aquatic products. Since the foundation in 2014 the name Chihiros has produced some significant waves. Through good quality and an excellent price-performance ratio, a sustainable and growing influence on the market of aquaristic technology could be achieved. With innovative ideas, such as lamps that can be controlled via Bluetooth and WIFI, chic designs and, above all, a lot of technology at attractive prices, Chihiros has been able to secure a firm place in many living rooms and hearts of aquarium enthusiasts. In addition to LED lamps, the product range also includes accessories for aquarium filters, tools and glassware.

Manufacturer information

Manufacturer
Name	Shanghai Ogino Biotechnology Co., Ltd. CIXI branch
Street	Gaoke Avenue No. 598, Buildng 7, Room 1-1
City	Xixi High-tech Industrial Development Zone
State	Zhejiang Province
Country	China
E-mail	chihiros@chihiros.cn
Website	www.chihirosaquaticstudio.com

Responsible person
Name	AS Aquaristik & Heimtierbedarf GmbH & Co. KG
Street	Gewerbering 19
City	86931 Prittriching
State	Bayern
Country	Deutschland
E-mail	as@as-aquaristik.de
Website	www.as-aquaristik.de

General information

Please choose a variant to see more information.

Item no.
EAN
Weight
Shipping weight

Questions and answers about Chihiros - LED System - Series B

You have questions about this product? Ask other customer or our support team about this product!

How come the model B20 has 12.7 watts and the model B30 has 20.9 watts, when both have the same number of LEDs? Kind regards. Peter Trispel

Translated from German

Peter T.

Sep. 2023

Aquasabi Support

Mar. 2024

With the Chihiros LED System Series B30, the higher wattage puts more power into the LEDs. At 1,292 lumens, the B30 also has a higher luminous flux than the B20 at 813 lumens.

Translated from German

Helpful!

877 persons find this helpful

Hello everyone, is there also a rope suspension for this lamp?

Translated from German

Peter H.

Dec. 2023

Aquasabi Support

Dec. 2023

Support

A rope suspension is available for the lamp: https://www.aquasabi.business/Chihiros-Seil-Aufhaengung-Set-Serie-B.

Translated from German

Helpful!

836 persons find this helpful

Hello Aquasabi team, is one B 60 light enough for a tank measuring 60x45x36? I'm asking because of the depth of the tank.

Translated from German

Peter H.

Mar. 2024

Aquasabi Support

Apr. 2024

For tank depths of over 40 cm and the use of ground cover plants and more demanding plants, using two lamps is advisable. In a simple setup without ground cover plants, one light may be sufficient.

Translated from German

Helpful!

810 persons find this helpful

Customer reviews

This item has been rated 4.5 out of 5 stars
25 Reviews

Please sign in if you want to write a review. Sign in

5 Stars(20)
4 Stars(2)
3 Stars(0)
2 Stars(1)
1 Star(2)

Enrico L.

Great light with fantastic illumination!

11th September

Chihiros - LED System - Series B - B80

For the price you get an enormously powerful LED. Solidly built, stylish design and perfect illumination for my 80 cm tank. Very satisfied !

Translated from German

Show original

Top Lampe mit super Licht!

Für den Preis bekommt man eine enorm leistungsstarke LED. Solide Verarbeitet schickes Design uns perfekte Ausleuchtung für mein 80 cm Becken. Bin sehr zufrieden !
